Tutorial

Ajqvue Plugin Advanced

September 25, 2016

Introduction


    The Ajqvue application supports a fully modular plugin architecture. The Tutorial, Ajqvue Plugin Basics should be reviewed before delving into this advanced tutorial because introductory concepts like plugin loading and interface requirements are detailed there. In this tutorial we will concentrate on the Table Field Profiler plugin which is incorporated into the Ajqvue application as one of the default plugins. Though an indepth discussion will not be presented in this tutorial of the Table Field Profiler analysis tools we will be covering the creation of Menus, Toolbars, and Resource derivation. In the process of discussing these more advanced concepts involved with plugin creation several addition Ajqvue APIs will be introduced. A developer can review the Ajqvue API that comes with the application in the docs directory.

illustration 1

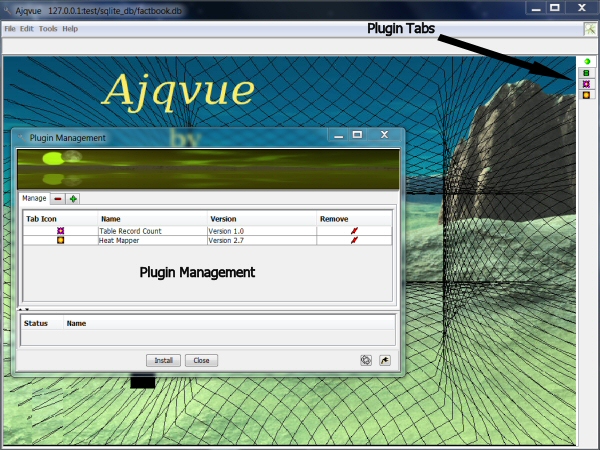

Figure 1. Ajqvue Main Interface


Plugin_Module


    The core aspect of the Ajqvue plugin module architecture is oriented around the abstract Plugin_Module class. This class was discussed in the basics tutorial and all plugins must extend this interface through a class called PluginModule. Remember Ajqvue when looking for plugins to load will only accept the class name PluginModule. So following in this vein the Table Field Profiler also has a PluginModule class and is shown in Listing 1 below. In the Ajqvue Plugin Basics Tutorial the PluginModule classes only implemented the most essential methods required by the PluginModuleInterface such as initPlugin(), getName(), getPanel(), and setDBTables(). In the Table Field Profiler's PluginModule class we likewise have these methods, but also override the methods getAuthor(), getVersion(), getDescription(), getTabIcon(), getMenuBar(), and getToolBar() from the PluginModuleInterface class. All of these additional methods the Table Field Profiler PluginModule class overrides return constructs from the Table Field Profiler's main class TableFieldProfiler, except the getName(), getAuthor(), and getDescription() methods.

Code Listing 1: (Table Field Profiler PluginModule.java)

//=================================================================
//               TableFieldProfiler PluginModule
//=================================================================
//
//    This class provides the hook to incorporate a external plugin
// module into the Ajqvue application.
//
//                   < PluginModule.java >
//
//=================================================================
// Copyright (C) 2010-2016 Dana M. Proctor
// Version 2.5 09/25/2016
//
// This program is free software; you can redistribute it and/or
// modify it under the terms of the GNU General Public License
// as published by the Free Software Foundation; either version
// 2 of the License, or (at your option) any later version. This
// program is distributed in the hope that it will be useful,
// but WITHOUT ANY WARRANTY; without even the implied warranty
// of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See
// the GNU General Public License for more details. You should
// have received a copy of the GNU General Public License along
// with this program; if not, write to the Free Software Foundation,
// Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
// (http://opensource.org)
//
//=================================================================
// Revision History
// Changes to the code should be documented here and reflected
// in the present version number. Author information should
// also be included with the original copyright author.
//=================================================================
// Version 1.0 Initial Dandy Data Profiler MyJSQLView_PluginModule Class.
~
~
~
//         2.4 Updated Copyright.
//         2.5 Referenced Imports to Ajquve Application.
//
//-----------------------------------------------------------------
//                 danap@dandymadeproductions.com
//=================================================================

package com.dandymadeproductions.tablefieldprofiler;

import java.util.ArrayList;

import javax.swing.ImageIcon;
import javax.swing.JMenuBar;
import javax.swing.JPanel;
import javax.swing.JToolBar;

import com.dandymadeproductions.ajqvue.datasource.ConnectionManager;
import com.dandymadeproductions.ajqvue.gui.Main_Frame;
import com.dandymadeproductions.ajqvue.plugin.Plugin_Module;

/**
 *    The PluginModule class provides the hook to incorporate a external
 * plugin module into the Ajqvue application.
 *
 * @author Dana M. Proctor
 * @version 2.5 09/25/2016
 */

public class PluginModule extends Plugin_Module
{
   // Class Instances
   // private Main_Frame parent;
   private TableFieldProfiler dataProfiler;

   //==============================================================
   // PluginModule Constructor.
   //==============================================================

   public PluginModule()
   {
      super();
   }

   //==============================================================
   // Class method to start the classes thread.
   //==============================================================

   public void initPlugin(Main_Frame mainFrame, String path)
   {
      // Main Class
      dataProfiler = new TableFieldProfiler(mainFrame, path, ConnectionManager.getTableNames());
   }

   //==============================================================
   // Class method to meet the interface requirements for getting
   // the name of the module.
   //==============================================================

   public String getName()
   {
      return "Table Field Profiler";
   }

   //==============================================================
   // Class method to meet the interface requirements for getting
   // the author of the module.
   //==============================================================

   public String getAuthor()
   {
      return "Dandy Made Productions";
   }

   //==============================================================
   // Class method to return the version release number of the
   // plugin module.
   //==============================================================

   public String getVersion()
   {
      return TableFieldProfiler.getVersion();
   }

   //==============================================================
   // Class method to meet the interface requirements for getting
   // the description for the module.
   //==============================================================

   public String getDescription()
   {
      return "The TableFieldProfiler module encompasses aspects that give general\n"
             + "information for a database's table fields and also a cluster and number\n"
             + "analysis. The information is presented in the form of graphic charts,\n"
             + "pie, bar, & bubble for the field's record count, distribution, and\n"
             + "patterns. The analysis aspect of the profiler gives frequency, variation,\n"
             + "percentile, and clustered average information for a field.";
   }

   //==============================================================
   // Class method to meet the interface requirements of returning
   // a ImageIcon that will be used as the plugin's tab Icon.
   //==============================================================

   public ImageIcon getTabIcon()
   {
      return dataProfiler.getTabIcon();
   }

   //==============================================================
   // Class method to meet the interface requirements of returning
   // a Menu Bar that will be used as the plugin's Menu Bar.
   //==============================================================

   public JMenuBar getMenuBar()
   {
      return dataProfiler.getMenuBar();
   }

   //==============================================================
   // Class method to meet the interface requirements of returning
   // a Too Bar that will be used as the plugin's Tool Bar.
   //==============================================================

   public JToolBar getToolBar()
   {
      return dataProfiler.getToolBar();
   }

   //==============================================================
   // Class method to meet the interface requirements for returning
   // a JPanel for inclusion in the Ajqvue application's main
   // tab.
   //==============================================================

   public JPanel getPanel()
   {
      return dataProfiler.getPanel();
   }

   //==============================================================
   // Class method to meet the interface requirements for being
   // able to set the database tables.
   //==============================================================

   public void setDBTables(ArrayList tableNames)
   {
      dataProfiler.setDBTables(tableNames);
   }
}


Like all plugins for Ajqvue a developer should orientate initialization of components for a plugin in the initPlugin() method of the PluginModule class. In this method for the Table Field Profiler module we essentially just create the class object dataProfiler, of type TableFieldProfiler. The dataProfiler object forms the basis for the module and takes three arguments. The first two come directly from the call to the initPlugin() method and are the Ajqvue's main frame and a path object. The third is a call to the Ajqvue's class ConnectionManager for the database tables associated with a connection. We will discuss shortly more about the dataProfiler object, but first lets speak more about the path argument because it is used to derive resources for the plugin

The path instance that is passed to plugin modules gives the URL that was derived by Ajqvue in loading the plugin's JAR file. A developer should create resources for a plugin with this in mind. The standard taken by the Ajqvue group is to have a directory in this path, location of JAR file, by the same name as the plugin and in this directory have images and other pertinent objects required by the plugin. Please see Figure 2. below. With this in mind lets move on to the dataProfiler object to understand the use of this path and the other arguments in the instantiation of this class.

illustration 2

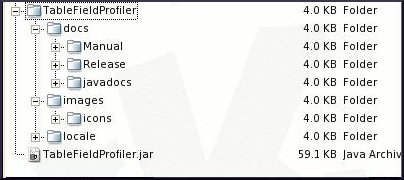

Figure 2. Plugin Directory Structure


TableFieldProfiler Class


    Though the TableFieldProfiler class is the core main object for the Table Field Profiler plugin though it is not per say a main class. All plugins do not have a main class, but has discussed previously and in the Plugin Basics just the PluginModule class which Ajqvue initializes through the initPlugin() method and then loads the various components needed to utilize the plugin. The main object for plugins is always a Java Jomponent that is the face of the plugin in the Ajqvue application tab interface. So what we will see in the TableFieldProfiler core class is the creation of a top JPanel object and since this plugin is more versatile than a basic one the creation of resources and menu and toolbar objects. Listing 2. below shows the TableFieldProfiler class and as seen is composed of a constructor and six methods. Three of the methods just return the objects indicated, JPanel, JMenuBar, and JToolBar. The other two a version String and an ImageIcon. The last method setDBTables() was highlighted in the Plugin Basics and is used to reload database tables if that action is taken within the Ajqvue application.

Code Listing 2: (Table Field Profiler Main Class TableFieldProfiler.java)

//=================================================================
//                      TableFieldProfiler
//=================================================================
//
//    This class provides the main access point for setting up the
// requirements for the Table Field Profiler Module for the Ajqvue
// application.
//
//                  < TableFieldProfiler.java >
//
//=================================================================
// Copyright (C) 2010-2016 Dana M. Proctor
// Version 5.8 09/25/2016
//
// This program is free software; you can redistribute it and/or
// modify it under the terms of the GNU General Public License
// as published by the Free Software Foundation; either version
// 2 of the License, or (at your option) any later version. This
// program is distributed in the hope that it will be useful,
// but WITHOUT ANY WARRANTY; without even the implied warranty
// of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See
// the GNU General Public License for more details. You should
// have received a copy of the GNU General Public License along
// with this program; if not, write to the Free Software Foundation,
// Inc., 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
// (http://opensource.org)
//
//=================================================================
// Revision History
// Changes to the code should be documented here and reflected
// in the present version number. Author information should
// also be included with the original copyright author.
//=================================================================
// Version 1.0 Initial TableFieldProfiler Class.
~
~
~
//         5.7 Updated VERSION to 5.7 & Changed tabIcon in Constructor to
//                        16x16 Icon Image.
//         5.8 Referenced Imports to Ajquve Application. Updated VERSION.
//
//-----------------------------------------------------------------
//                 danap@dandymadeproductions.com
//=================================================================

package com.dandymadeproductions.tablefieldprofiler;

import java.awt.CardLayout;
import java.util.ArrayList;

import javax.swing.ImageIcon;
import javax.swing.JMenuBar;
import javax.swing.JPanel;
import javax.swing.JToolBar;

import com.dandymadeproductions.ajqvue.Ajqvue;
import com.dandymadeproductions.ajqvue.gui.Main_Frame;
import com.dandymadeproductions.ajqvue.utilities.AResourceBundle;

/**
 *    The TableFieldProfiler class provides the main access point for setting up
 * the requirements for the Table Field Profiler Module for the Ajqvue
 * application.
 *
 * @author Dana M. Proctor
 * @version 5.8 09/25/2016
 */

class TableFieldProfiler
{
   // Class Instances
   private Main_Frame parent;
   private String imagesDirectory;
   private ImageIcon tabIcon;
   private Profiler_MenuBar menuBar;
   private Profiler_ToolBar toolBar;
   private JPanel dataProfilerMainPanel;
   private CardLayout profilerCardLayout;
   private TableFieldChartsPanel tableFieldInformationPanel;
   private TableFieldAnalysisPanel tableFieldAnalysisPanel;
   private TableFieldClusterAnalysisPanel tableFieldClusterAnalysisPanel;

   private AResourceBundle resourceBundle;

   protected static final String INFORMATION_CARD = "Information";
   protected static final String NUMBER_ANALYSIS_CARD = "Number Analysis";
   protected static final String CLUSTER_ANALYSIS_CARD = "Cluster Analysis";

   private final static String VERSION = "Version 5.8";

   //==============================================================
   // TableFieldProfiler Constructor
   //==============================================================

   TableFieldProfiler(Main_Frame parent, String path, ArrayList tableNames)
   {
      this.parent = parent;

      // Constructor Instances.
      String pathDirectory, localeDirectory;
      MenuActionListener pluginMenuListener;

      // Setup the Main panel and the plugin's components.

      profilerCardLayout = new CardLayout();
      dataProfilerMainPanel = new JPanel(profilerCardLayout);

      // file, locale resource not in jar
      pathDirectory = path + "/" + "TableFieldProfiler" + "/";
      localeDirectory = "locale/";
      imagesDirectory = "images/icons/";

      // file & http, locale resource in jar
      //pathDirectory = path + "/" + "TableFieldProfiler.jar";
      //localeDirectory = "lib/plugins/TableFieldProfiler/locale/";
      //imagesDirectory = "lib/plugins/TableFieldProfiler/images/icons/";

      resourceBundle = new AResourceBundle(pathDirectory, true);
      resourceBundle.setLocaleResource(localeDirectory, "TableFieldProfiler", Ajqvue.getLocaleString());

      tabIcon = resourceBundle.getResourceImage(imagesDirectory + "informationIcon_16x16.png");

      // Table Field Information Panel.
      tableFieldInformationPanel = new TableFieldChartsPanel(resourceBundle, imagesDirectory,
                                                             tableNames);
      dataProfilerMainPanel.add(INFORMATION_CARD, tableFieldInformationPanel);

      // Table Field Analysis Panel.
      tableFieldAnalysisPanel = new TableFieldAnalysisPanel(parent, resourceBundle, imagesDirectory,
                                                            tableNames);
      dataProfilerMainPanel.add(NUMBER_ANALYSIS_CARD, tableFieldAnalysisPanel);

      // Table Field Cluster Analysis Panel.
      tableFieldClusterAnalysisPanel = new TableFieldClusterAnalysisPanel(resourceBundle, imagesDirectory,
                                                                          tableNames);
      dataProfilerMainPanel.add(CLUSTER_ANALYSIS_CARD, tableFieldClusterAnalysisPanel);

      // Setup the MenuBar and ToolBar to be used by the plugin.

      pluginMenuListener = new MenuActionListener(parent, resourceBundle, tableFieldInformationPanel,
                                                  tableFieldAnalysisPanel, tableFieldClusterAnalysisPanel,
                                                  dataProfilerMainPanel, profilerCardLayout);
      menuBar = new Profiler_MenuBar(parent, resourceBundle, pluginMenuListener);
      toolBar = new Profiler_ToolBar("Table Field Profiler ToolBar", parent, resourceBundle,
                                     imagesDirectory, pluginMenuListener);
   }

   //==============================================================
   // Class method to to the plugin's JMenuBar
   //==============================================================

   protected JMenuBar getMenuBar()
   {
      return menuBar;
   }

   //==============================================================
   // Class method get the plugin's JToolBar
   //==============================================================

   protected JToolBar getToolBar()
   {
      return toolBar;
   }

   //==============================================================
   // Class method to get the main panel associated with the plugin.
   //==============================================================

   protected JPanel getPanel()
   {
      return dataProfilerMainPanel;
   }

   //==============================================================
   // Class method to get the plugin's version.
   //==============================================================

   protected static String getVersion()
   {
      return VERSION;
   }

   //==============================================================
   // Class method to get the icon that will be used in the
   // Ajqvue tab.
   //==============================================================

   protected ImageIcon getTabIcon()
   {
      return tabIcon;
   }

   //==============================================================
   // Class method to set the database tables.
   //==============================================================

   protected void setDBTables(ArrayList tableNames)
   {
      // Create panels if needed.

      if (tableFieldInformationPanel == null || tableFieldAnalysisPanel == null
            || tableFieldClusterAnalysisPanel == null)
      {
         tableFieldInformationPanel = new TableFieldChartsPanel(resourceBundle, imagesDirectory, tableNames);
         dataProfilerMainPanel.add("Information", tableFieldInformationPanel);

         tableFieldAnalysisPanel = new TableFieldAnalysisPanel(parent, resourceBundle, imagesDirectory,
                                                               tableNames);
         dataProfilerMainPanel.add("Analysis", tableFieldAnalysisPanel);

         tableFieldClusterAnalysisPanel = new TableFieldClusterAnalysisPanel(resourceBundle, imagesDirectory,
                                                                             tableNames);
         dataProfilerMainPanel.add(CLUSTER_ANALYSIS_CARD, tableFieldClusterAnalysisPanel);
      }
      else
      {
         // Reload Information Charts.
         tableFieldInformationPanel.reloadPanel(tableNames);
         tableFieldInformationPanel.repaint();

         // Reload Analysis.
         tableFieldAnalysisPanel.reloadPanel(tableNames);
         tableFieldAnalysisPanel.repaint();

         tableFieldClusterAnalysisPanel.reloadPanel(tableNames);
         tableFieldClusterAnalysisPanel.repaint();
      }
   }
}


    The constructor for the TableFieldProfiler class like most classes is where the setup for the Table Field Profiler plugin occurs. The first thing that is done in the constructor is to create the JPanel, dataProfilerMainPanel. This panel is the face of the plugin that users will see in the selected tab for the Table Field Profiler module. Since this particular plugin is composed of three tools, a field information, field number analysis units and cluster analysis, we set the layout for that panel to a cardlayout. In that way the three tools can be switched as required by the user. Once that is done we begin the derivation of a resource source for the plugin that is based on the path argument string. When a developer creates the plugin a decision should be made to allow these local/remote resources to be either sourced in the JAR file of the plugin or not. Plugins that are to not be loaded locally from the file system require resources to placed in the plugin's JAR.

In the TableFieldProfiler constructor we see the two ways that this may be implemented, one commented out. The example uses resources that will NOT be included in the JAR and uses three instances to derive the pathDirectory, localeDirectory, & imagesDirectory from the path and layout that was chosen by the plugin as shown in Figure 2. We then create a Ajqvue ResourceBundle based on the pathDirectory and set the locale for the plugin. The language locale can be obtained directly from the Ajqvue API method getLocaleString(). That language locale string is chosen by the user when Ajqvue is first run or by argument to the application. Though one could use the standard Java API for a Resource object Ajqvue uses its own resource class which provides greater flexibility, control and organizing resources in a plugin environment.

In the constructor we now see the use of a resource object. The tabIcon is acquired through the Ajqvue_ResourceBundle's getResourceImage(). In that method we pass the imagesDirectory and the name of the image file. The tabIcon will be returned through the class method getTabIcon() to the plugin module so that it may be displayed in Ajqvue's main tab pane. Likewise we may also use the resourceBundle oject to obtain a getResourceString(). That method is demonstrated in the discussion of the Profiler_MenuBar class below.

    Now that all the main setup in the constructor has been accomplished then the only activities left to do is to create the three tools for the plugin, and of course the menu and toolbar objects. The three tools are added to the dataProfilerMainPanel. Notice we pass as arguments to those three classes the resourceBundle and imagesDirectory objects so they can establish there own reference to resources as required. The menu and toolbar objects for the plugin are created through two separate classes Profiler_MenuBar and Profiler_ToolBar. An Action Listener object is also created to handle the processing of events in the plugin. The Action Listener class, MenuActionListener, is not covered in this tutorial, but is supplied like all resources via links available at the end of this tutorial.

Note: Any classes given as part of this tutorial are covered by the GPL and may be used in accordance with that license.

Table Field Profiler Profiler_MenuBar Class


    The last aspect of this advanced Ajqvue plugin tutorial that is to be dealt with is the creation of a custom menu bar and tool bar components for the Table Field Profiler plugin. Ajqvue allows each plugin to share its controls, action events, and create their own. As each plugin tab is selected in the main interface of Ajqvue the MenuBar and ToolBar for that plugin is activated and available for use. Since a tool bar houses essential duplicate items in the form of buttons with icons as a menu system we will just review the MenuBar object for the Table Field Profiler plugin.

The partial Code Listing 3. shown below is of the Table Field Profiler's Profiler_MenuBar class. Though the menu systems has both a File and Tool entry all that is needed to demonstrate the desired concepts is the creation of the File menu. What one should note immediately about this class is it extends the Java JMenuBar component so that its meets the needs of a standard MenuBar. The constructor for the Profiler_MenuBar class is straight forward with the assignment of the three passed arguments to class instances. Remember those objects were the Ajqvue main frame, the resourceBundle, and the custom Action Listener object. Up to this point we have not used the Ajqvue main frame object, but we will shortly. The constructor code continues with calling two helper methods to build the file and tools menu systems and then producing a custom logo object. Of interest here is the use of the Ajqvue_Utils class to obtain the icons directory and loading one of Ajqvue's own icon images for the logo.

Code Listing 3: (Table Field Profiler Profiler_MenuBar.java)

//=================================================================
//            TableFieldProfiler Profiler_MenuBar
//=================================================================
//
//    This class is used to constructed the menubar for the Table
// Field Profiler plugin module.
//
//                < Profiler_MenuBar.java >
//
//=================================================================
// Copyright (C) 2010-2016 Dana M. Proctor.
// Version 2.8 09/25/2016
//
// This program is free software; you can redistribute it and/or
~
~
~
//
//=================================================================
// Revision History
// Changes to the code should be documented here and reflected
// in the present version number. Author information should
// also be included with the original copyright author.
//=================================================================
// Version 1.0 Original Profiler_MenuBar Class.
~
~
~
//         2.8 Referenced Imports to Ajquve Application.
//
//-----------------------------------------------------------------
//                 danap@dandymadeproductions.com
//=================================================================

package com.dandymadeproductions.tablefieldprofiler;

import java.awt.Font;

import javax.swing.BorderFactory;
import javax.swing.Box;
import javax.swing.ImageIcon;
import javax.swing.JButton;
import javax.swing.JMenu;
import javax.swing.JMenuBar;
import javax.swing.JMenuItem;

import com.dandymadeproductions.ajqvue.Ajqvue;
import com.dandymadeproductions.ajqvue.gui.Main_Frame;
import com.dandymadeproductions.ajqvue.gui.MenuActionCommands;
import com.dandymadeproductions.ajqvue.utilities.AResourceBundle;
import com.dandymadeproductions.ajqvue.utilities.Utils;

/**
 *    The Profiler_MenuBar class is used to constructed the menubar for the
 * Table Field Profiler plugin module.
 *
 * @author Dana M. Proctor
 * @version 2.8 09/25/2016
 */

class Profiler_MenuBar extends JMenuBar
{
   // Instance & Class Fields.
   private static final long serialVersionUID = 1227314757701051137L;

   private Main_Frame mainFrame;
   private AResourceBundle resourceBundle;
   private transient MenuActionListener menuListener;

   public static final String ACTION_FILE_OPEN = "FO";
   public static final String ACTION_FIELD_INFORMATION = "TFI";
   public static final String ACTION_FIELD_NUMBER_ANALYSIS = "TFNA";
   public static final String ACTION_FIELD_CLUSTER_ANALYSIS = "TFCA";

   //==============================================================
   // Profiler_MenuBar JMenuBar Constructor.
   //==============================================================

   protected Profiler_MenuBar(Main_Frame parent, AResourceBundle resourceBundle,
                              MenuActionListener plugin)
   {
      mainFrame = parent;
      this.resourceBundle = resourceBundle;
      menuListener = plugin;

      // Constructor Instances.
      String iconsDirectory;

      // JMenu Bar for the plugin.
      setBorder(BorderFactory.createEtchedBorder());

      // Creating the File, & Tools Menus
      createFileMenu();
      createToolsMenu();

      add(Box.createHorizontalGlue());

      // Logo
      iconsDirectory = Utils.getIconsDirectory() + Utils.getFileSeparator();
      ImageIcon logoIcon = Ajqvue.getResourceBundle().getResourceImage(iconsDirectory + "ajqvueIcon.gif");
      JButton logoIconItem = new JButton(logoIcon);
      logoIconItem.setDisabledIcon(logoIcon);
      logoIconItem.setFocusPainted(false);
      logoIconItem.setBorder(BorderFactory.createLoweredBevelBorder());
      add(logoIconItem);
   }

   //==============================================================
   // Helper Method to create the File Menu.
   //==============================================================

   private void createFileMenu()
   {
      // Method Instances.
      String resource;
      JMenu fileMenu;
      JMenuItem item;

      // ===========
      // File Menu

      resource = resourceBundle.getResourceString("Profiler_MenuBar.menu.File",
                                                  "File");
      fileMenu = new JMenu(resource);
      fileMenu.setFont(fileMenu.getFont().deriveFont(Font.BOLD));

      // Open
      resource = resourceBundle.getResourceString("Profiler_MenuBar.menu.Open",
                                                  "Open");
      fileMenu.add(menuItem(resource, ACTION_FILE_OPEN));
      fileMenu.addSeparator();

      // Exit
      resource = resourceBundle.getResourceString("Profiler_MenuBar.menu.Exit",
                                                  "Exit");
      item = new JMenuItem(resource);
      item.addActionListener(mainFrame);
      item.setActionCommand(MenuActionCommands.ACTION_EXIT);
      fileMenu.add(item);

      add(fileMenu);
   }
   ~
   ~
   ~
   //==============================================================
   // Instance method used for the TableFieldProfiler's creation
   // of menu bar items. Helper Method.
   //==============================================================

   private JMenuItem menuItem(String label, String actionLabel)
   {
      JMenuItem item = new JMenuItem(label);
      item.addActionListener(menuListener);
      item.setActionCommand(actionLabel);
      return item;
   }
}


    Moving forward with the menu systems for the plugin we have the class method createFileMenu(). Here is where we will create a File menu with sub items of File | Open, and File Exit. The first is basic in nature and is derived by using the resourceBundle.getResourceString() and calling an additional helper method to create the JMenuItem. Note we assign an ActionListener for that sub item of the custom MenuActionListener, menuListener, in the helper method menuItem(). The last menu sub item is slightly different from the first because it is a call to exit the application. It is done via one of Ajqvue own action events that is part of Ajqvue's main frame. We find the action event needed by making a reference to the MenuActionCommands class. In this case the action command string is ACTION_EXIT. We complete the File menu by adding the JMenu to the classes' own add method.

Summary


    In this Ajqvue advanced plugin tutorial we have discussed the implementation of the Table Field Profiler plugin. The Table Field Profiler module was chosen because it demonstrates advanced features that a plugin may need in order to accomplish its purposes. Some of those advanced aspects of plugin creation have to do with returning a version string and tab icon image for the Ajqvue's tabbed pane. Other requirements that a plugin may need to implement is language support. Ajqvue provides a class, AResourceBundle, and a method to return user selected locale information via Ajqvue.getLocaleString() to accomplish this goal. Ajqvue determines the location of resources via the path string object that is passed to the initPlugin() method of the PluginModule class. The final advanced features that a plugin may wish to produce is a menu and tool bar components. The PluginModule class provides a means to return those objects so they may be assigned to the tab interface for the plugin. In addition Ajqvue also makes its own menu items, and action events available to a plugin via the Main_Frame class and its corresponding action commands in the MenuActionCommands class.


Resources

Table Field Profiler PluginModule Class
Table Field Profiler Main Class
MenuActionListener Class
Profiler_MenuBar Class
Profiler_ToolBar Class
